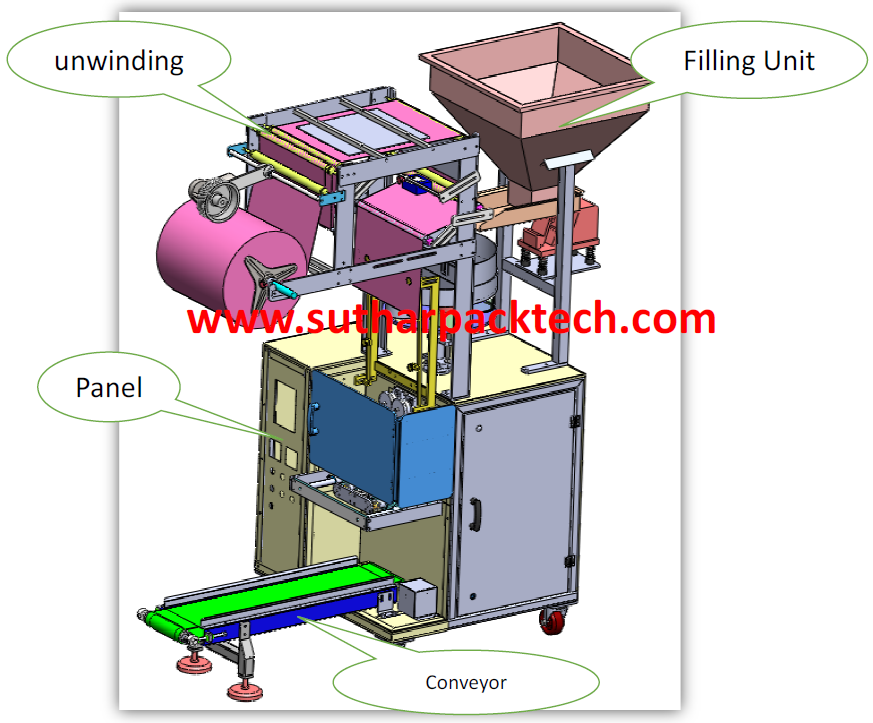

Half Pneumatic in Disc For packing upto 250 g
Technical Specification :-
| Food Contact Parts | SS-304 |
| Spped | Upto 28 PPM depending on Pouch Length |
| Sealing type | Center Seal |
| pneumatic Components | janatics |
| Unwinding | Wiper Motor |
| pulling Motor | 0.5 HP Motor |
| Sensor | Dynamic & Dolphin |
| Controller | Jiya Lal |
| SMPS | Schnieder / Omron |
| SSR | Adlor / Unison |
| Cladding | SS-304 |
| Hopper Capacity | Upto 25 Kg |
| Power Consumption | 2.25 KW with temperature Controller |
| Electric Supply Requirement | Three Phase 220 V AC |
| Compressor Air Required | 2 CFM |
| Dimension | Front 900mm, Length 1950mm, Height 2050mm |
| Machine Weight | 400 Kg |
| Material | Free flow Material |
| Weight Variation | 1-2% |
| Wastage | 1-2% |
| Delivery | 25-30 Days against P.O. |
| Warranty | One year Against Mechanical Manufacturing defects only. No Electric parts fall Under Warranty. |
