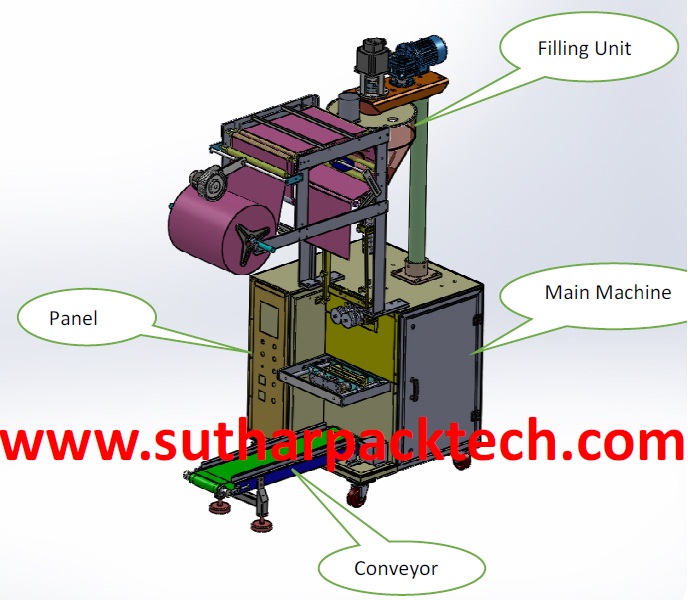

Half Pneumatic Machine in Auger Filling
Technical Specification :-
| Food Contact Parts | SS-304 |
| Speed | Upto 28ppm depending on Pouch Length |
| Sealing type | Center seal |
| pneumatic Components | janatics |
| Unwinding | Brake with Cylinder |
| Pulling Motor | 0.5 HP geared Motor |
| Filling Motor | 1.0 Kw Servo Base |
| Sensor | DA |
| PLC | Yes |
| HMI 7 | Yes |
| SMPS | Schnieder / Omron/ Inovance |
| SSR | Adlor/Unison |
| Material Empty Sensor | Yes |
| Cladding | SS -304 |
| Hopper Capacity | Upto 25 Kg |
| Power Consumption | 4KW with Temperature Controller |
| Electric Supply Requirement | Three Phase 440 V AC |
| Compressor Air Required | 2 CFM |
| Dimension | Front 900mm, Length 1700mm, Height 2400mm |
| Machine Weight | 400 Kg |
| Material | Free/Non Free flow Material |
| Weight Variation | 1-2% |
| Wastage | 1-2% |
| Delivery | 25-30 Days against P.O. |
| Warranty | One year Against Mechanical Manufacturing defects only. No Electric parts fall Under Warranty. |
