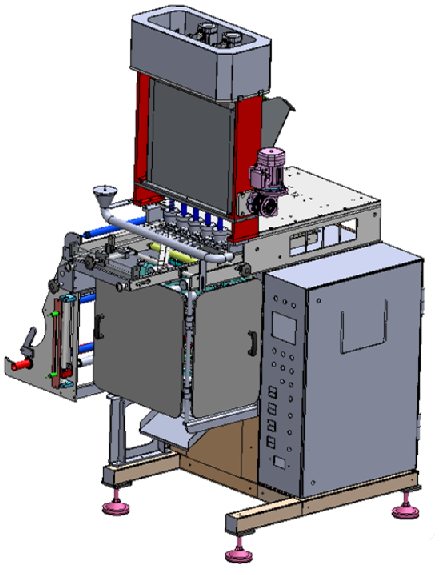

Multi-Track Machine 6 track for Powder Packing
Technical Specification :-
| Food Contact Parts | SS-304 |
| Speed | Upto 50-60 PPM depending on Pouch Length (i.e. 60 X no. of Tracks) |
| Sealing type | Four Side Seal |
| pneumatic Components | janatics |
| Unwinding | Brake with cylinder |
| Pulling Motor | 1.0 HP Rotomotive AC Motor |
| Sensor | P&F |
| PLC | Mitsubishi |
| HMI 7 inch | Mitsubishi |
| Auger Filling Servo | Mitsubishi |
| SMPS | Schneider / Omron |
| SSR | Adlor/Unison |
| Paper Break Sensor | Yes |
| Material Empty Sensor | Yes |
| Cladding | SS-304 |
| Hopper Capacity | Upto 25 kg |
| power Consumption | 10 KW with Temperature Controller |
| Electric Supply Requirement | Three Phase 440 V AC |
| Compressor Air Required | 6 CFM (3 HP for one Machine and 5 HP for two Machine) |
| Dimension | Front 1600mm, Length 1650mm, Height ___mm |
| Machine Weight | 2000 Kg |
| Material | Powder |
| Weight Variation | 1-2 % |
| Wastage | 1-2 % |
| Delivery | 25-30 Days against P.O. |
| Warranty | One year Against Mechanical Manufacturing defects only. No Electric parts fall Under Warranty. |
