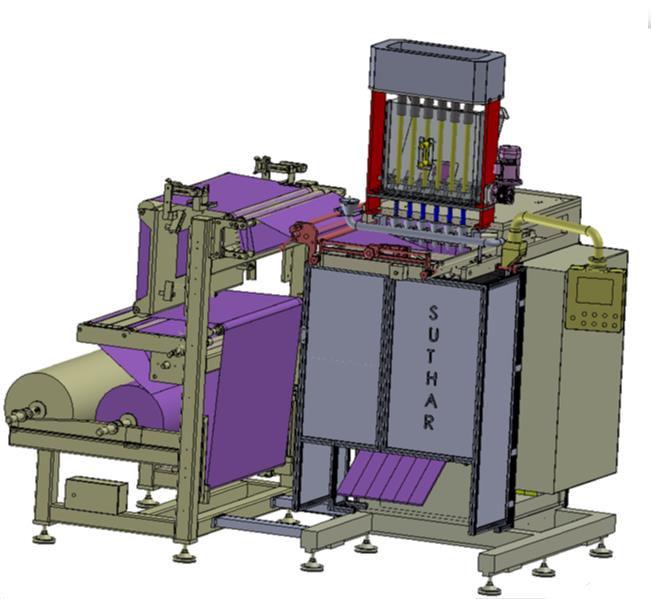

Multi-Track Machine 10 Track for Powder Packing
Technical Specification :-
| Sealing type | Four Side Seal |
| Speed | 70 Strokes/min. Max. (Depends uponthe type of product & quantity to be filled) |
| Laminate Draw off System | PLC based servo Driven |
| Control | Through Touch Screen Panel (HMI) |
| Laminate Tracking System | E+L Web aligner - Digital |
| Main control panel | Air colled panel - BCH make or Rittal |
| Contact Parts | SS-304 |
| Batch Cutting | can be programmed through PLC |
| Mat Format | in built feature of the machine |
| Electrical Specifications | Main motor - 202 Kw, 3 Phase, 415 V , Connected Load - 14 Kw, Consumption - 11 Kw |
| Controllers | PLC Controlled Operation, RTD module with PLC for temperature |
| Layout Dimensions | Length -3200 mm, Width -2600mm, height - 2100 mm |
| Machine Weight | Net weight - 3500 kg, Gross weight - 4000 Kg |
| Compressed Air | Operation pressure - 5 bar, Consumption - 3 CFM |
| pneumatics | Festo or equivalent |
| Machine Efficiency | 95%* |
| Scrap Rate | Less than 2%* |
| Weight variation | Within +/- 2%* of the filled quantity |
